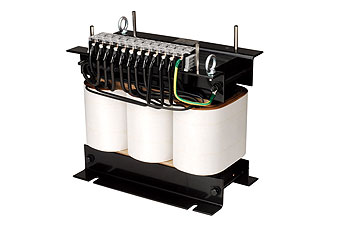

Three Phase Auto Transformer
Model: SP-TBSM-4X, SP-TBSW-4X, SP-TBS-4X, SP-MBA-4X, SP-MB-4X, SP-CL-4X, SP-BT-4X
Product Description
Three Phase Auto Transformer
- Phase: three
- Frequency: 50/60Hz
- Capacity: input voltage × input current × 1.732
- Applicable Directives: CE LVD2006/95/EC, CE EMC2004/108/EC, UL E207224
- Applicable Standards: IEC/EN61558-1:2005+A1:2009,EN61558-2-13:2009
- Of Class: A(105℃) E(120℃) B(130℃) F(155℃) H(180℃)
- IP System: 00/20
- Ambient Temperature: -10 ~ +40℃
- Ambient Humidity: 45~85%RH
- Elevation: Max 1000m
- Protective Earth Conductor Current: EN61558-1
- Insulation Resistance Test: EN61558-1
- Dielectric Strength Test: EN61558-1
- Induced High Voltage Test: Rated voltage of 2 times 420Hz±4Hz 18sec

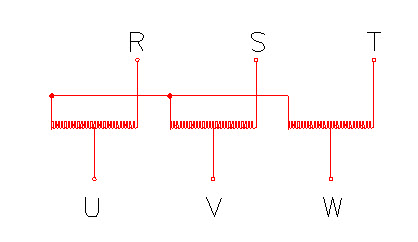

3 Phase Auto Transformer Draw
