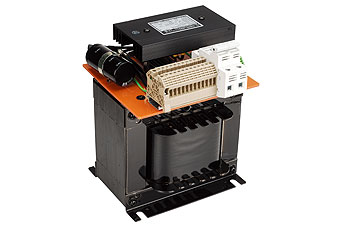

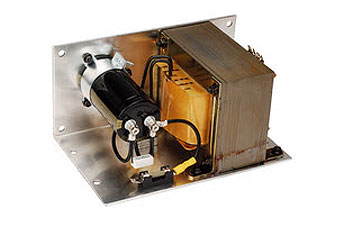

Three Phase DC to AC Power Transformer
Model: SP-TBSM-3X, SP-TBSW-3X, SP-TBS-3X, SP-MBA-3X, SP-MB-3X, SP-CL-3X, SP-BT-3X
Product Description
Three Phase DC to AC Power Transformer
Phase：3~
Frequency：50/60Hz
Capacity：output voltage × output current × 1.732
Applicable directives：CE LVD2006/95/EC
Applicable directives：CE EMC2004/108/EC
Applicable standards：IEC/EN61558-1:2005+A1:2009,EN61558-2-4:2009
Of class：A(105℃) E(120℃) B(130℃) F(155℃) H(180℃)
Applicable Directives：UL E207224
Of class： B(130℃) H(180℃)
IP system：00/20
Ambient temperature：-10 ~ +40℃
Ambient humidity：45~85%RH
Elevation：Max 1000m
Protective earth conductor current：EN61558-1
Insulation resistance test：EN61558-1
Dielectric strength test：EN61558-1
Induced high voltage test：Rated voltage of 2 times 420Hz±4Hz 18sec
