NEO series: Strictly regulated medical transformer for power supply

〈Safety〉Meets medical equipment safety requirement

Acquired third version of TÜV IEC-60601-01 CB certification, it not only ensure the safety of the user but it also helps the manufacturer to approve the medical equipment efficiently.

100% UL Certification

Adopt UL1446“Insulation System”by using U.S. UL insulated material; safety will be the key to promote the equipment in worldwide market for medical manufacturer

Various input voltages

100V series and 200V series of input terminal are installed, could be used worldwide

Undersized & Lightly

Medical transformer is 30% smaller 、50% lighter、40% shorter than EI core transformer.

Input: Obvious & Simple

Simple operation to minimize installation error

TÜV certification inquiry – TUV dot COM

Product that acquired TÜV Rheinland CB certification could be checked online http://www.tuvdotcom.com/

TÜV dot COM ID: 0000028574

UL certification inquiry

100 % UL 1446“Insulation”material; UL、File、No. E218630

ROHS environmental material

EU ROHS meets (2002/95/EC)

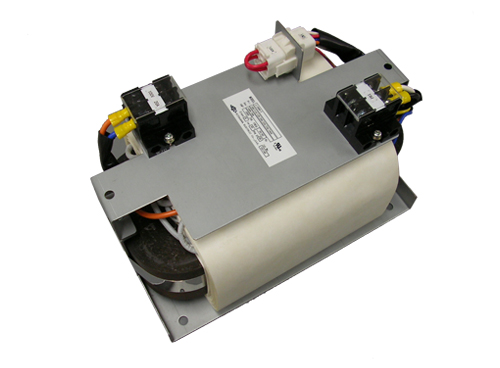

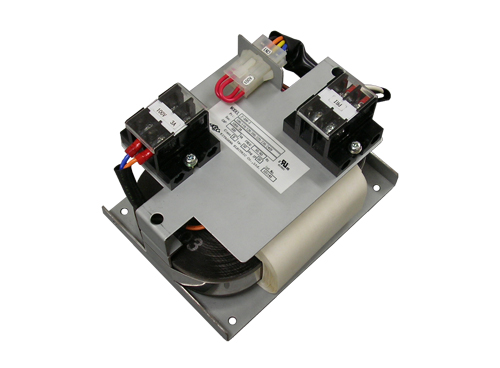

Product: Medical Transformer
Frequency: 50/60Hz
Capacity: 300VA~2000VA
Certification: IEC60601-1 3rd, UL1446 E218630
Insulation Class: B (130°C)
Fluctuating Voltage: Input voltage ±3% (Full load)
Ambient Temperature: -10°C~+50°C (Operating)
Break Down Voltage: 4400V/min.
Temperature Rise: Continue load under 80°C
Remark: Customizable
